The array DC disconnect serves as an essential safety mechanism within a solar power system, acting as a protective barrier for the system and the personnel working on it. The DC disconnect is strategically positioned between the solar panels and the inverter. It is pivotal in managing the flow of DC electricity from the panels to the inverter, which converts the DC electricity into AC for home or grid use. When service or maintenance is required, the array DC disconnect effectively halts the flow of electricity from the solar panels to the rest of the solar system. This setup ensures that during maintenance or in an emergency, the risk of electric shock is significantly reduced, creating a safer environment for electricians and technicians to conduct their work.

Types of DC Disconnects

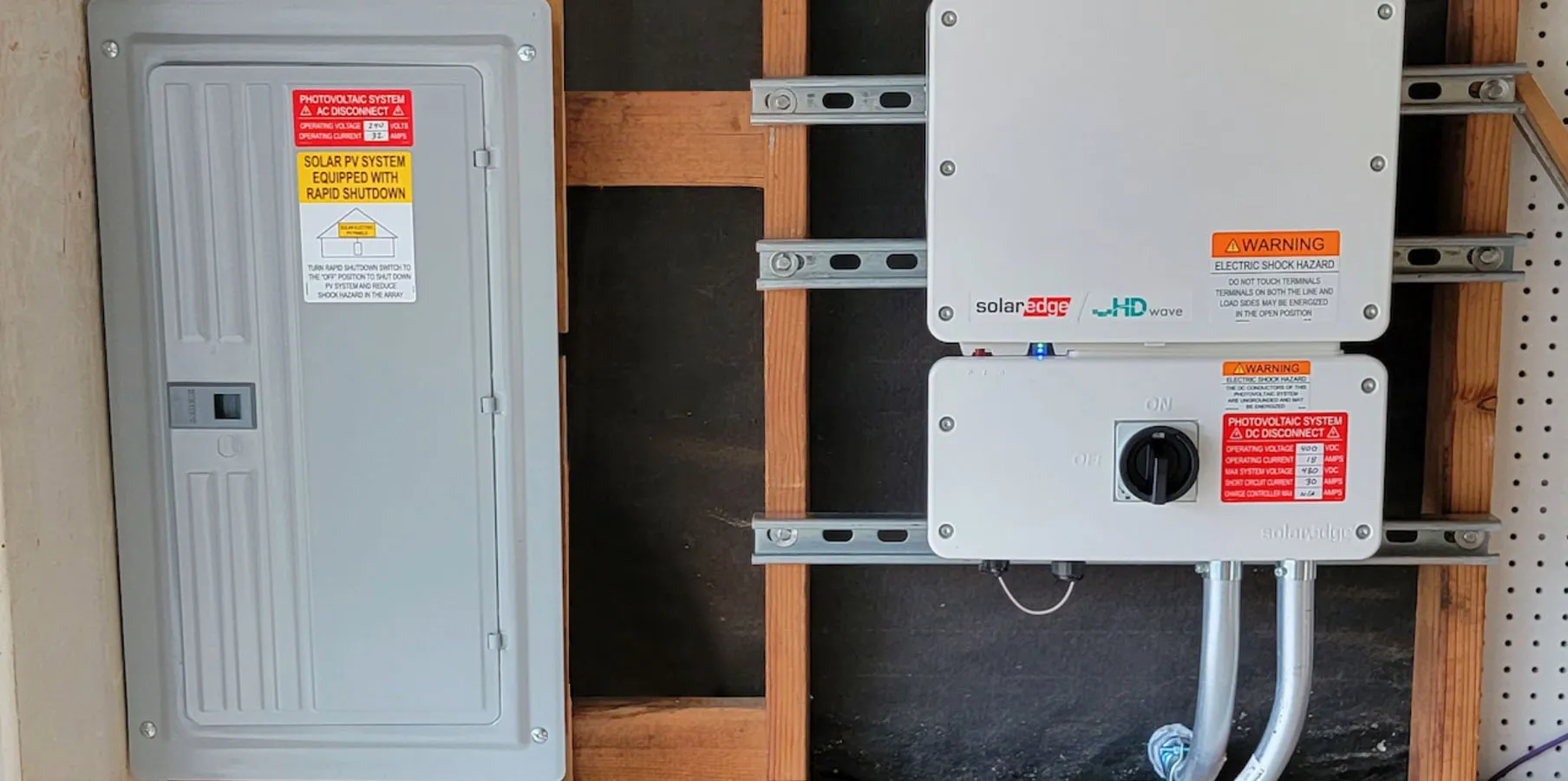

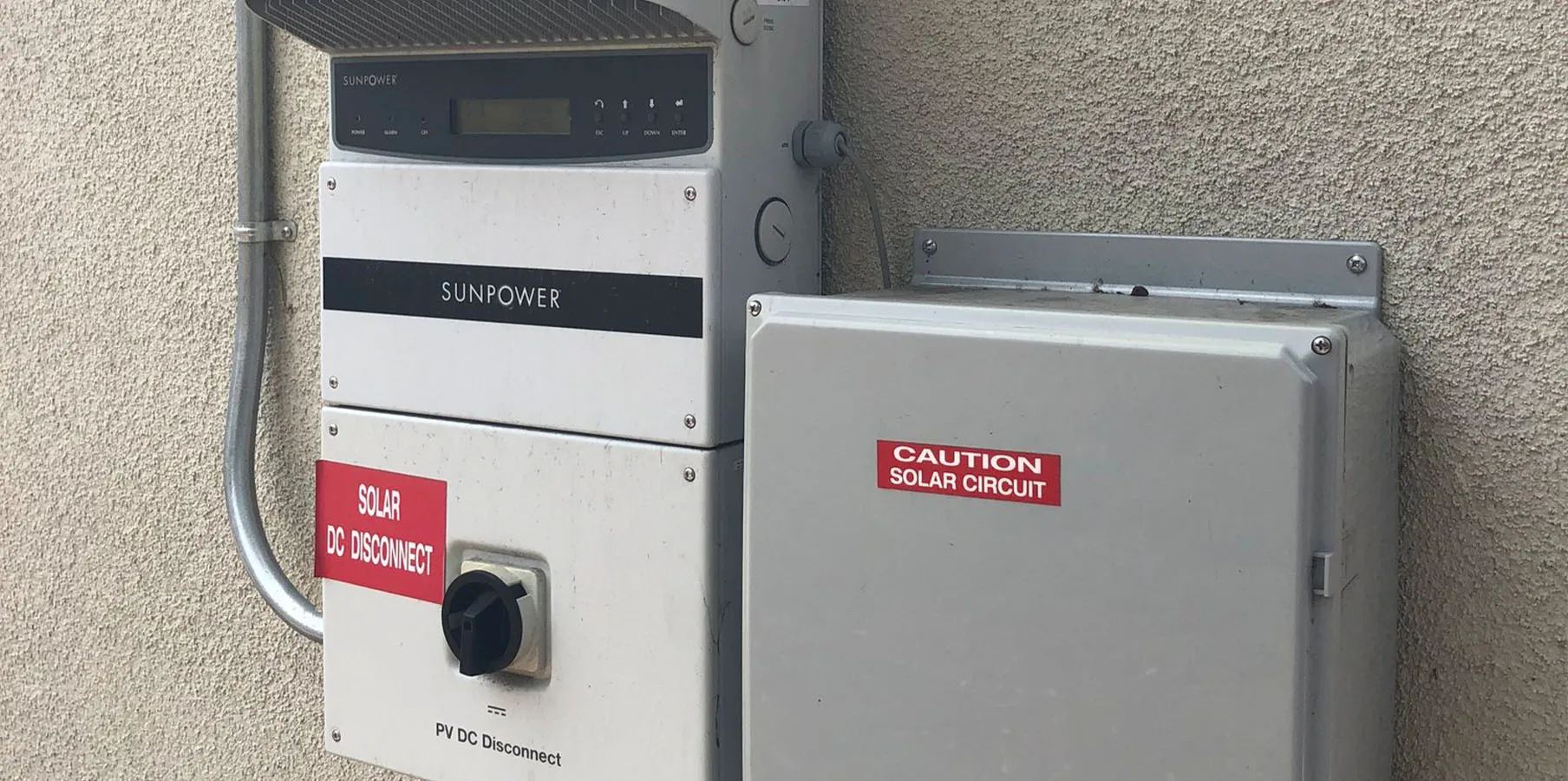

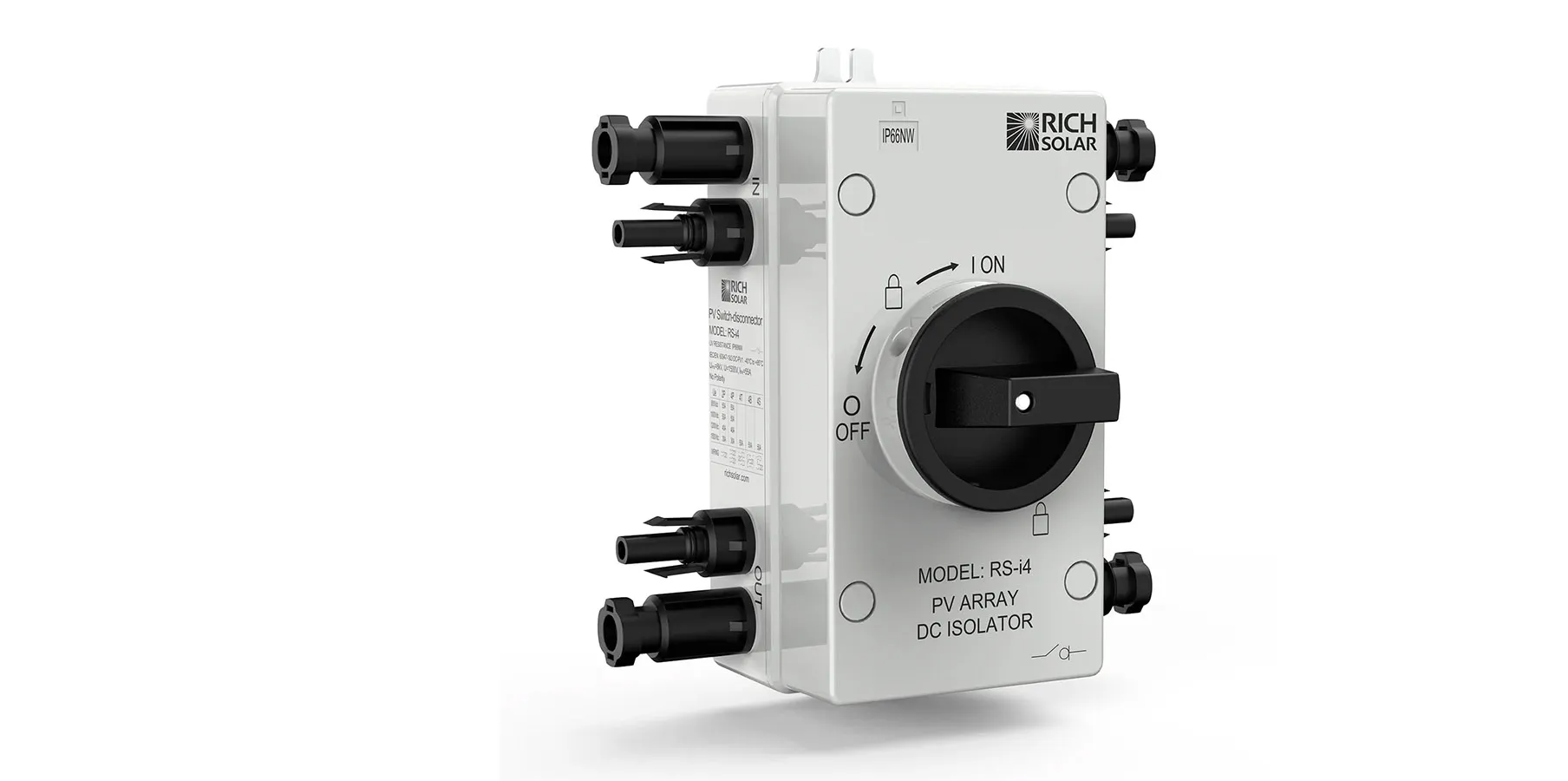

Array DC disconnects come in various types to cater to system requirements and safety standards. These range from manual switches requiring physical operation to disconnect power to automatic disconnects that engage under specific conditions without human intervention. Some disconnects are integrated directly with other components like inverters to streamline the system’s design and enhance safety. Understanding the appropriate type for a specific installation is necessary for maintaining system integrity and compliance with safety regulations.

Installation Requirements

Adherence to electrical codes and standards is non-negotiable for implementing an array DC disconnect. These regulations mandate the presence of a DC disconnect to allow for the swift and safe de-energization of the system, thereby protecting first responders and technicians from the dangers of electrocution.

Proper installation of the DC disconnect is key to ensuring easy access and functionality. It must be installed in a location that is readily accessible to operators, often near the inverter, for operational convenience. The installation process should follow strict guidelines to secure the disconnect against environmental threats and ensure its durability. This includes weatherproofing for outdoor installations and confirming the switch is within easy reach for quick emergency deactivation.

Maintenance and Safety Precautions

Issues such as corrosion, wear, and electrical faults can impair the functionality of the DC disconnect over time, so regular maintenance schedules should include testing the DC disconnect switch to confirm that it fully isolates the solar array when engaged. This is essential for the safety of both the system and its operators. Recognizing signs of malfunction, such as difficulty switching or unusual noises during operation, is crucial for timely maintenance and repair.

Beyond regular testing and maintenance, following safety precautions when handling the DC disconnect is imperative. Operators should always ensure the system is de-energized before performing maintenance or inspections. Using appropriate personal protective equipment (PPE) and adhering to safety protocols can prevent accidents and ensure the well-being of everyone involved.
